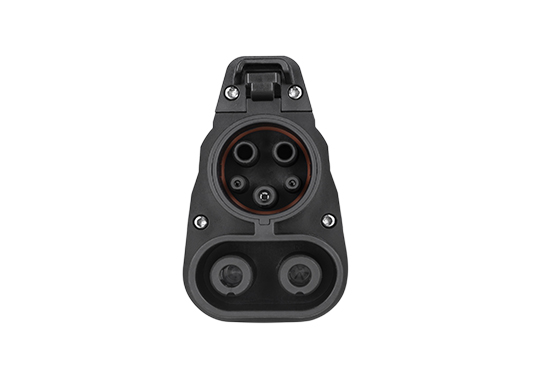

CCS Combo 1 Sae J1772 DC Charging Connector

AP DC charging connector conform to sae j1772 combo connector provisions and requirements. It's compatible with multi-type brand vehicles and ensure safety during charging time.

Feature of CCS Combo 1 Sae J1772 DC Charging Connector

Conform to requirement of SAE J1772.

The end of the J1772 DC terminal is designed with safety insulation to prevent direct human contact

The Sae j1772 combo connector adopts bi-color coating technology, customized color accepted.

Prevent overheating safety dangers effectively, and the protection level IP55 (working condition) meeting different situation.

Specifications of CCS Combo 1 Sae J1772 DC Charging Connector

Product code AP-SAEDC

Rated current 70A,125A,150A,200A

Rated voltage 600V

Insulation resistance >2000MΩ(DC1000V)

Withstand Voltage 3200V

Contact resistance 0.5mΩMax

Pins temperature rise:
