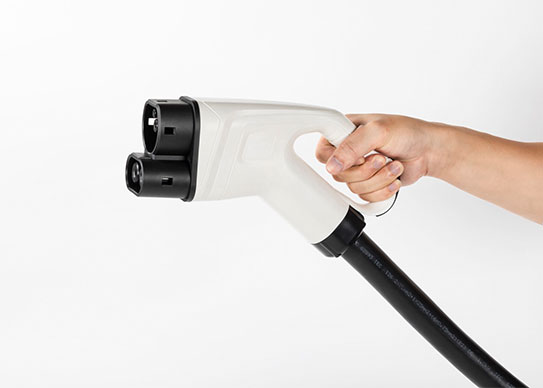

CCS IEC 62196-3 CCS Combo 2 Connector

AP IEC DC charging plug conforms to 62196-3 IEC norm provisions and requirements. It has excellent IP55 protection level and is able to match muiltple brands and ensure stable safety charge.

Feature of CCS IEC 62196-3 Combo CCS2 Charging Connector

Conform to requirement of 62196-3 IEC norm

The bottom of the pin is designed with safety insulation to prevent direct human contact

Adopt dual color coating technology, customized color accepted

The flame retardant grade UL94V-0

Specifications of CCS IEC 62196-3 Combo 2 Charging Connector

Product code AP-IECDC

Rated current 80A, 150A, 200A

Rated voltage 1000V

Insulation resistance >500MΩ

Withstand Voltage 3000V

Contact resistance 0.5mΩ Max

Pins temperature rise:
