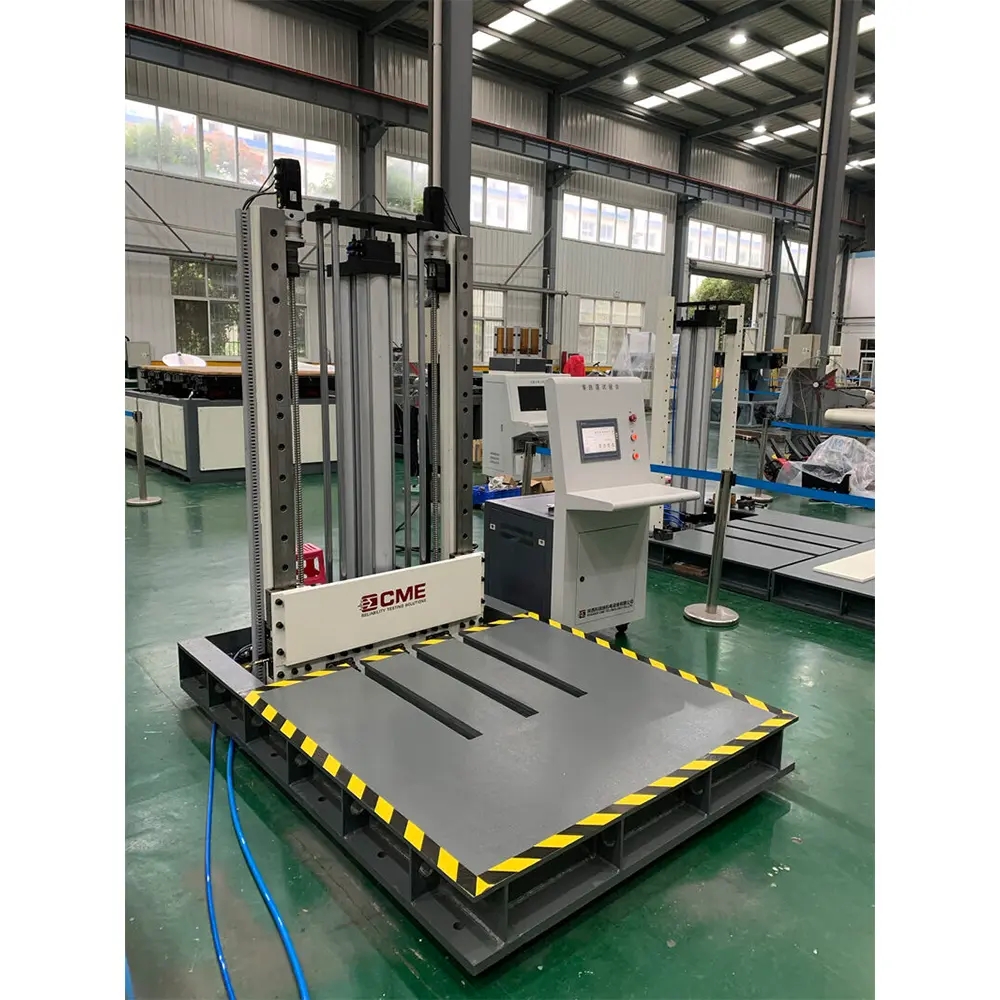

KRD40 series zero-distance drop shock test machine is a single lifting servo motor driving drop shock machine, which is mainly used for packaging goods that will be impacted by a vertical drop during transportation and handling operations at a good drop test machine price . The packaged goods are subjected to standardized tests (face drop, angle drop, edge drop, etc.) to collect data, for the design of cushioning and vibration reduction, and the selection of packaging materials provide a design basis. It is applicable for electronic products, plastic products, toy products, packaged products, and unpacked products, to evaluate the impact strength of the product during handling or the damage caused by the drop, and to evaluate the impact resistance during transportation and handling procedure.

FEATURES OF KRD40 ZERO DISTANCE DROP TEST MACHINE

Servo closed-loop motor drive, simple structure, high reliability, smooth lifting

Adopt a single fully automatic lifting method, and the drop height is adjustable

PLC control is stable and reliable, the drop height can be accurately tracked and displayed in real-time

Handheld pad + human-computer interaction software, easy to operate

It can realize the drop test of the edge, surface, and angle of the sample

True color full touch screen operation, convenient and quick

Adopt the E-fork structure to rise and fall, and the E-fork tray moves up and down under the control of a servo motor and a screw roller

TECHNICAL SPECIFICATIONS OF KRD40 ZERO DISTANCE DROP TEST MACHINE

Model KRD KRD KRD

Parameters 40 -100 40 -200 40 - 300

Max.Load (kg) 100 200 300

Drop Height (mm) 0~1500

Max.Specimen Size (mm) 1000×1000×1000 1200×1200×1200 1300×130O×1300

Position Accuracy ±2

Drop Zone Size (w"D/mm) 1200x1200 140O×1400 1500x1500

Test Mode Face,Edge and Angle

Power AC380V±10% 5OHz

Working Environment Temperature range O~40°C, humidity
