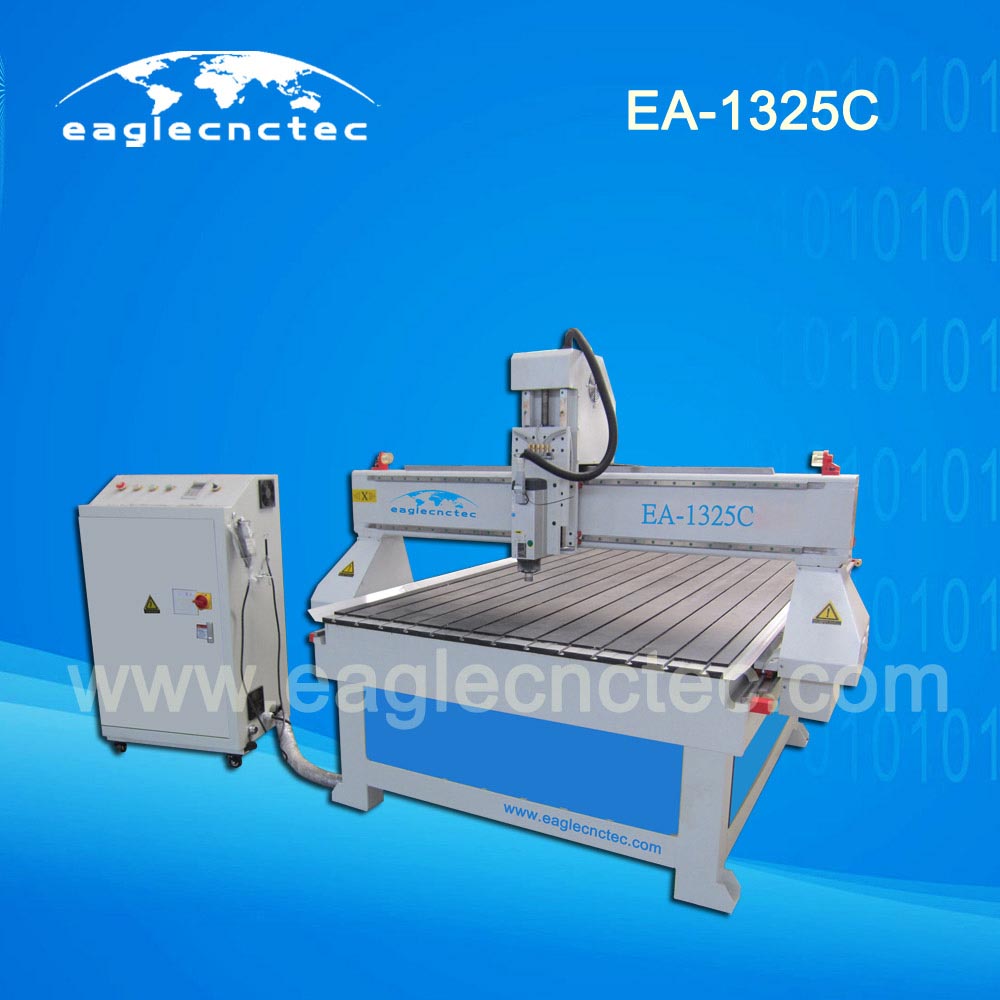

Inexpensive 2.5D CNC Router 4×8 for General Use

From www.eaglecnctec.com

Jinan EagleTec CNC Machinery Co.,Ltd.，a professional China CNC Router Manufacturer.

2.5D CNC router has three axis totally which are X,Y and Z axis. So it is also called 3 axis cnc router. Max. Machining capacity of this type router machine is to make 2.5D carving or milling. In CNC machining, 2.5D means a surface which is a layout of plane into 3rd dimension. Simply speaking, it is 3 dimension object based on a regular plane.

Application

Materials best for CNC router 4×8 is acrylic, MDF, melamine, phenolic, plywood, HDPE, PVC, foam and solid wood.

Field: General purpose

Technical Parameter

XY Working Size | 4’ ×8’

Z Stroke | 200mm

Gantry Height | 200mm

Table Type | Aluminum profile and PVC

Spindle | Origin HSD, 4HP, air cooled, RPM range 0-18,000

Drive Motor | Stepping motor

Max. Fly Speed | 35,000mm/min

Max. Machining Speed | 18,000mm/min

CNC Controller | RichAuto DSP or Weihong NK105

Linear Guideway | Origin HIWIN from Taiwan

Available Bits Shank Diameter | 3.175-16mm

Working Power | AC380V/50Hz, 3Ph or customized

Max. Power Consumption | 7KW

Net Weight | 1100KGS

Packing

Guideway and rack will be greased, then cnc router machine is fully wrapped with plastic film, last step it is packed into strong plywood case.
