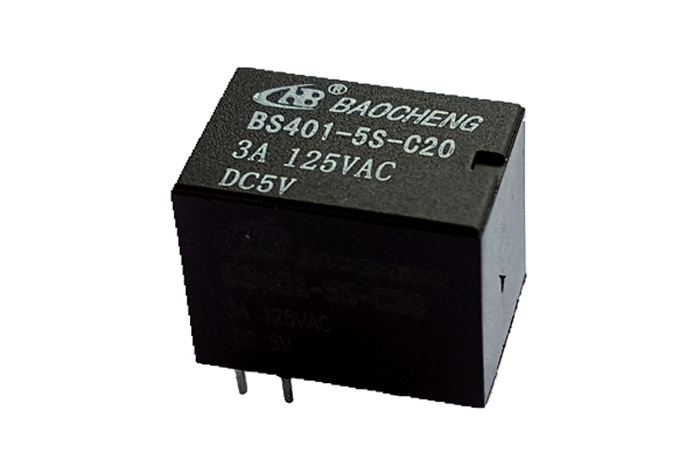

RELAY TYPE: BS401 Relay

Baocheng export excellent power relay, telecom relays and automotive relays.

5A switching capability

Standard PCB layout

Dielectric strength between coil and contact 1KV

NO,NC,NO&NC contact form available

UL insulation grade: Class F

Environmental friendly product

Outline dimension: 15.5 x 11 x 11.5mm

Contact Ratings

Contact Form: 1A, 1B, 1C

Contact Material: AgNi

Contact Load Capacity: 1A,2A,3A,5A/125VAC,30VDC

Max. Switching Current: 5A

Max. Switching Power: 625VA/150W

Mechanical Endurance: 1*107OPS

Electrical Endurance: 1*105OPS

Technical Ratings

Insulation Resistance: 100MΩ

Dielectric Strength(Between coil&contact): 1000VAC

Operate Time (Max.): 10ms

Release Time (Max.): 5ms

Ambient Temperature: -30℃ ~ 70℃

Terminal Type: DIP

Coil Ratings

Nominal Voltage (3-24)VDC

Nominal Coil Power 0.2W,0.36W,0.45W
