Introductions

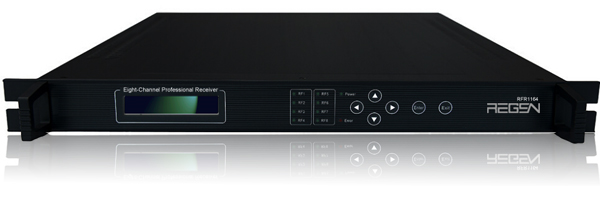

RFR1164 Eight-Channel Professional Receiver acts as a high-efficiency device for conversion from Tuner to IP in digital TV head-end systems. It demodulate received 8*RF signals, and then transmit them via IP(GigE, 1000M, UDP protocol) port. RF input signals can be in, DVB-S/S2, standard. The device is able to output with 64*SPTS via 64*IP addresses. Due to its features of high integration, multi-channel capacity designs, low error rate, etc., RFR1164 has been widely used between the new generation of IP network and DVB network, and also an ideal and cost-effective choice in IPTV systems.

Features

Configured with 8*ASI inputs; or 8* Tuner inputs, mode in,DVB-S2, DVB-S,

Integrated with demodulation & gateway function modules

MPEG-2, MPEG-4 TS to IP one way conversion supported

IP output in 64*SPTS, on UDP protocol

Unicast or multicast mode optional for IP output

1 GigE output, supporting parallel 1Gbps data output channel

Max. bit-rate of 800 Mbps achievable

Monitoring working situation by network system

Software upgrading through IP

Easy-operation by LCD and keyboard on front panel
