Prodigy S7-19P Logic System

The Prodigy S7-19P Logic Systems utilize Xilinx's highest capacity FPGA, the Xilinx Virtex Ultrascale+ VU19P, (also known as xcvu19p FPGA) making them ideal for ASIC/SoC applications that demand high logic capacity, interconnect, and bandwidth. The new VU19P-based prototyping platform provides 1.6x more logic per device and delivers a 30% performance improvement over its predecessor. The Prodigy S7-19P is available in three versions, including Single xilinx VU19P, Dual xilinx VU19P, and Quad xilinx VU19P, providing a range of options to meet various design requirements.

FPGA Resources - Xilinx Virtex Ultrascale+ VU19P (XCVU19P)

9M logic cells

Up to 500Mb of total on-chip integrated memory

Up to 38 TOPs of DSP compute performance are optimized

Technical Highlights

Delivers up to 196M equivalent ASIC gates with 1, 2, or 4 VU19P

Up to 5,288 high-performance I/Os for peripheral expansions & multi-system connectivity

Feature-rich remote management and runtime controls

Upgrade with Virtex UltraScale+™ VU19P FPGA

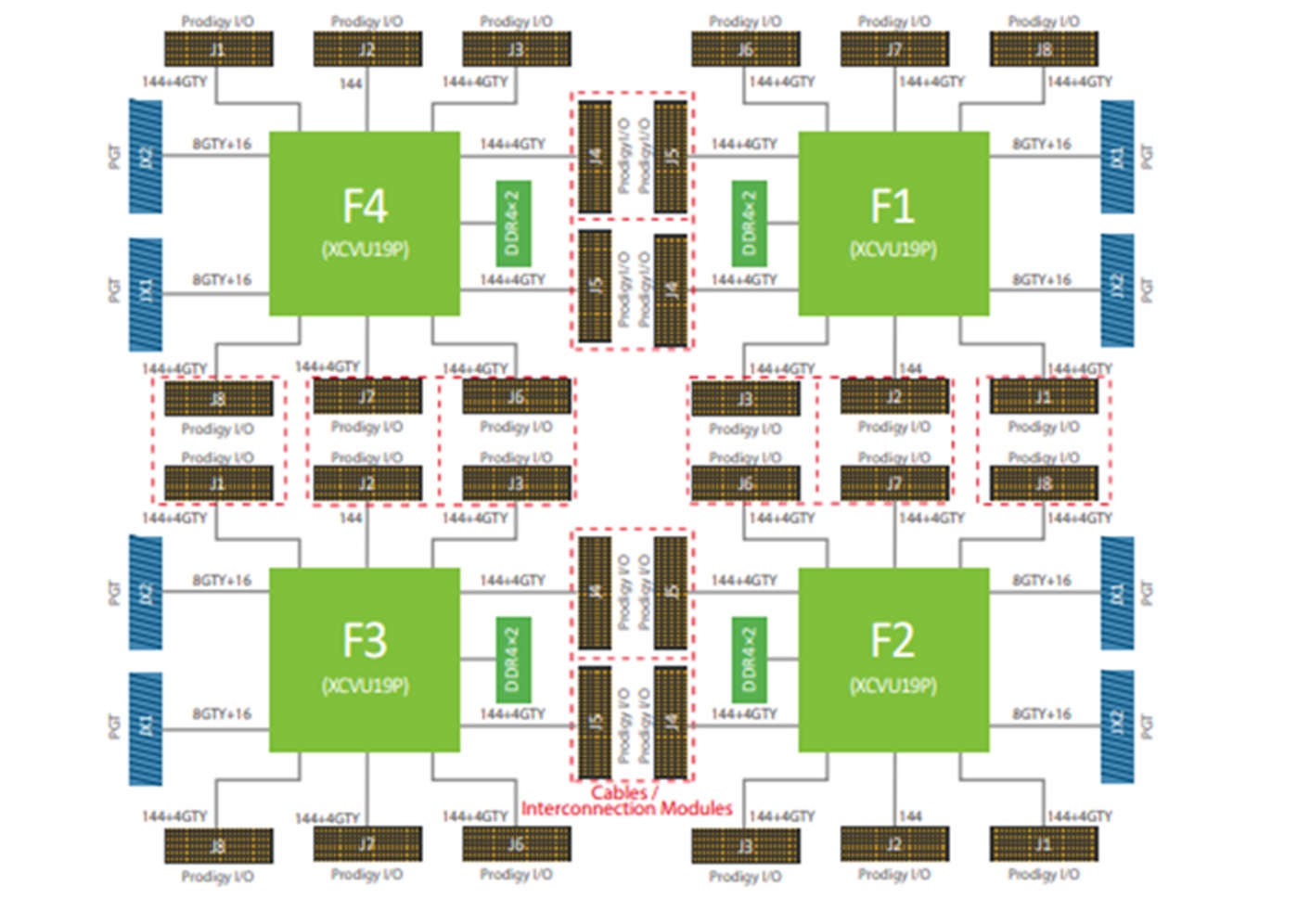

Prodigy™ S7-19P Logic System Configuration Table.
