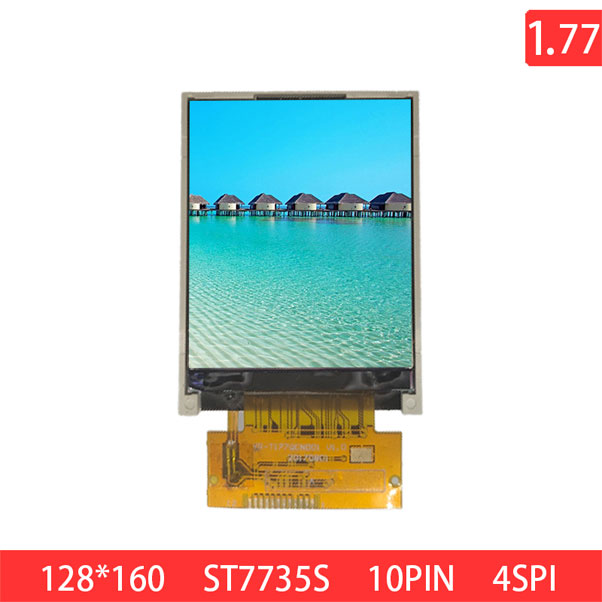

EX01701-A01 is a 1.77-inch, TN TFT LCD module with transmissive mode. Its resolution is 128x160 lcd dots (128 vertical by 160 horizontal pixel) and every pixel is made up of three vertical strips of Red, Green and Blue dots. This miniature liquid crystal display module, 1.77 TFT LCD has built-in IC ST7735S supporting SPI serial interface. The brightness is 300 cd/m2 with contrast ratio 900:1.Operating temperature covers from -20℃~+70℃, storage temperature range is from -30℃~+80℃.This single-display module is suitable for use in smart wear, smart watches, household appliances, toys, medical treatment, etc.

General Specifications of 1.77 TFT LCD 128x160 QQVGA 12PIN TN 300nits

No. Item Specification

1 LCD size 1.77inch

2 Resolution 128(RGB)×160

3 Active area 28.03(W)×35.04(H)mm

4 Module size 34(W)×45.83(H)×2.4(T)(Exclude FPC)mm

5 Interface SPI4

6 Pixel arrangement RGB vertical stripe

7 Display mode TN/ Normally White

8 Polarizer Transmissive

9 Brightness 300cd/m²

10 Contrast Ratio 900:1

11 Viewing Direction 12 O’CLOCK

Outline Dimension of 1.77 TFT LCD 128x160 QQVGA 12PIN TN 300nits

Features of 1.77 TFT 128x160 12 Pin LCD 128x160 Display Module

1. Compact Size

The 1.77-inch LCD display size is compact, making it suitable for applications where space is limited, such as portable electronic devices or embedded systems.

2. Clear and Detailed Resolution

With a resolution of TFT 128x160 pixels, the display provides clear and detailed visuals, making it suitable for presenting information, graphics, or simple images.

3. Full Color Display

The TFT (Thin-Film Transistor) technology enables a full-color display, allowing for vibrant and accurate color reproduction. This is beneficial for applications where color clarity is essential.

4. 12-Pin Interface

The 12 pin LCD interface provides a flexible and reliable connection to external devices or microcontrollers, facilitating seamless integration into electronic systems.

As a professional lcd display module factory, we provide tft lcd panel, tft 1.8 st7735 datasheet, lcd display module china, etc. For more information please feel to contact us!
